Roller blinds
The sun protection classic
Made-to-measure for your project
Choose the adequate roller blind model for your requests and benefit from the big choice of erfal roller blind fabrics for projects. No matter if you are planning offices or projects in the sector of Health Care, hotels, schools or administration - erfal has got the best solution for you.

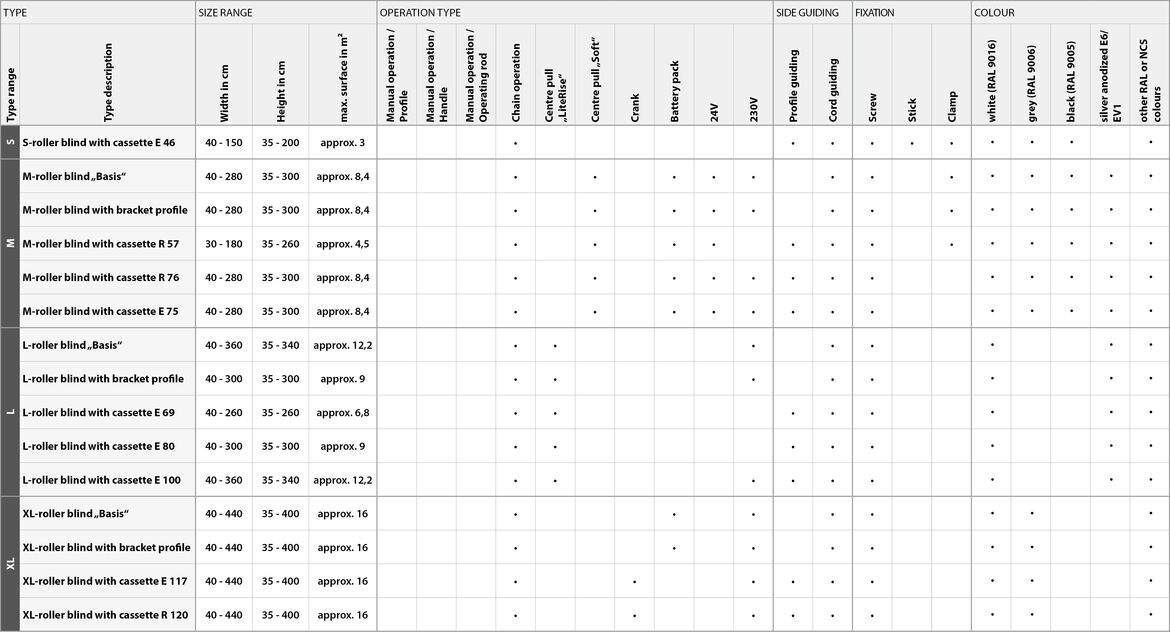

Overview models & applications
S - roller blinds
PRODUCT PROPERTIES
two-part powder-coated aluminium cassette roller blind (44 x 46 mm) with border profile / optional side guiding cord or profile
COLOURS
white (RAL 9016) / grey (RAL 9006) / black (RAL 9005) / other RAL or NCS colours on demand
SIZE RANGES
width 40 – 150* cm
height max. 200* cm
*depending on the fabric
MANIPULATION
chain / optional nickel chain
MOUNTING
wall / ceiling / block holder for casement / acrylate adhesive tape
M - roller blinds
PRODUCT PROPERTIES
Holder fixation / Bracket profile / Roller blind with aluminium cassette in 2 sizes (64 x 57 mm and 77 x 75 mm) with end profile/ optional: cord side guiding or profile (cassette)
COLOURS
white (RAL 9016) / grey (RAL 9006) / black (RAL 9005) / other RAL or NCS colours on demand
SIZE RANGES
width 40* – 280** cm
max. height 300** cm
* depending on the operating type
** depending on the fabric
OPERATION
Chain / Centre pull “Soft” / Accu / Motor 24 V / Motor 230 V
MOUNTING
Wall / Ceiling / Block holders
L - roller blinds
PRODUCT PROPERTIES
Holder fixation / Bracket profile / Roller blind with squared aluminium cassette in 3 sizes (75 x 69 mm, 90 x 80 mm, 100 x 100 mm) with end profile / optional: cord side guiding or profile (cassette) / optional: design brackets (holder fixation, bracket profile)
COLOURS
white (RAL 9016) and silver anodizes / further RAL or NCS colours on request
SIZE RANGES
width 40* – 360** cm
height max. 350** cm
*depending on the operation type
**depending on the fabric
OPERATION
Chain / LiteRise / Motor 230 V
MOUNTING
wall / ceiling
XL - roller blinds
PRODUCT PROPERTIES
Holder fixation / Bracket profile / Roller blind with squared / rounded aluminium cassette (115 x 120 mm) with end profile / coupled blinds possible (max. 600 cm) / optional: cord side guiding or profile (cassette)
COLOURS
white (RAL 9016) or grey (RAL 9006) / further RAL or NCS colours on request
SIZE RANGES
width 40* – 440** cm
height up to 400** cm
*depending on the operation type
**depending on the fabric
OPERATION
Chain / Crank / Motor 230V
MOUNTING
wall / ceiling
Roller blinds special solutions
WINDOW BAR ROLLER BLINDS
PRODUCT PROPERTIES:
chain operated roller blind for window bars of min. 14 mm
SIZE RANGES:
width 40 - 150* cm
height up to 210* cm
*depending on the fabric
S - NANO ROLLER BLINDS
PRODUCT PROPERTIES:
cassette roller blind with one or two vertically movable cassettes in the casement, side guiging and adhesive mounting
SIZE RANGES:
width 35 - 120* cm
height 40 - 180* cm
*depending on the fabric
ROOF LIGHT ROLLER BLINDS
PRODUCT PROPERTIES:
Basis and Comfort (side guiding) spring driven roller blind for standardized and unstandardized roof lights.
normed types for Velux, Roto, Dörken / Braas, Fakro
SIZE RANGES:
width 40 - 120* cm
height up to 140* cm
*depending on the fabric
